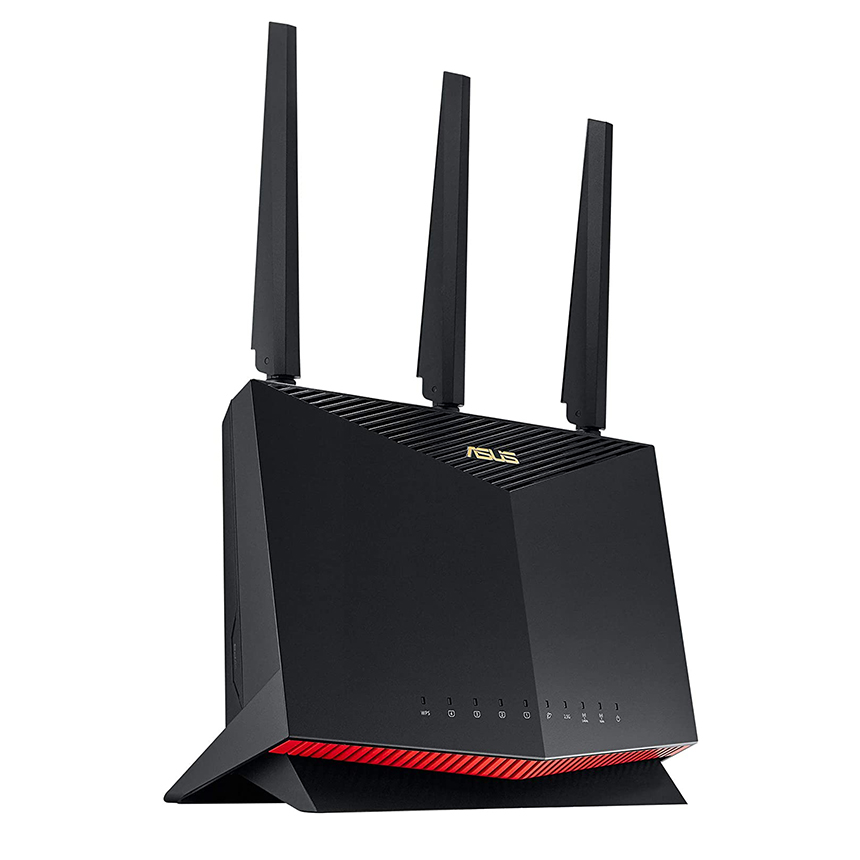

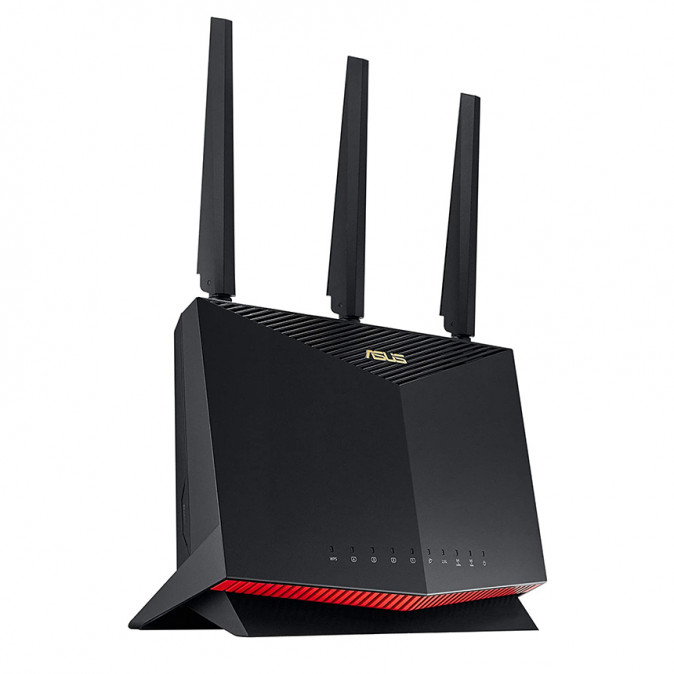

Asus RT-AX86U AX5700 Mbps Dual-band WiFi 6 gigabit AiMesh OFDMA mobile gaming Wi-Fi router aggregált 2G wan porttal ismertető Network Standard IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6 Product Segment AX5700 ultimate AX performance Coverage Very large homes Data Rate 802.11a : 6,9,12,18,24,36,48,54 Mbps802.11b : 1, 2, 5.5, 11 Mbps802.11g : 6,9,12,18,24,36,48,54 Mbps802.11n : up to 450 Mbps802.11n (1024 QAM) : up to 750 Mbps802.11ac (1024 QAM) : up to 4333 Mbps802.11ax (2.4GHz) : up to 861 Mbps802.11ax (5GHz) : up to 4804 Mbps Antenna External antenna x 3Internal PCB antenna x 1 Transmit/Receive 2.4 GHz 3 x 35 GHz 4 x 4 Processor 1.8 GHz quad-core processor Memory 256 MB Flash1 GB RAM Wi-Fi Technology OFDMA (Orthogonal Frequency Division Multiple Access)Beamforming: standard-based and universal1024-QAM high data rate20/40/80/160 MHz bandwidth Operating Frequency 2.4 GHz / 5 GHz Encryption WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support Firewall & Access Control Firewall: SPI intrusion detection, DoS protectionAccess control:Parental control, Network service filter, URL filter, Port filter Management UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log VPN Support IPSec Pass-ThroughPPTP Pass-ThroughL2TP Pass-ThroughIPSec serverPPTP serverOpenVPN serverPPTP clientL2TP clientOpenVPN client WAN Connection Type Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP Utilities Router setup wizard; Firmware restoration; Device discovary Ports RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4, RJ45 for 2.5G BaseT for WAN/LAN x 1USB 3.2 Gen 1 x 2 Features Router appLink Aggregation- 802.3adMU-MIMOTraffic AnalyzerAdaptive QoSAiProtection ProParental ControlGuest Network : 2.4 GHz x 3, 5 GHz x 3VPN server : PPTP Server, OpenVPN Server, IPSec serverVPN client : PPTP client, L2TP client, OpenVPN clientNAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relayMac OS BackupEnhanced media server (AiPlayer app compatible)- Image :- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, movAiCloud personal cloud service3G/4G data sharingPrinter ServerDownload Master- Support bt, nzb, http, ed2k- Support encryption, DHT, PEX and magnet link- Upload and download bandwidth control- Download schedulingAiDisk file server- Samba and FTP server with account managementDual WANIPTV supportRoaming AssistOFDMABeamformingNVIDIA Geforce Now Cloud Gaming OptimizationWAN Aggregation Button WPS Button, Reset Button, Power Switch, LED on/off Button LED Indicator Power x 1Wi-Fi x 22.5G Port x 1WAN x 1LAN x 4WPS x 1 Power Supply AC Input : 110V~240V(50~60Hz)DC Output : 19 V with max. 2.37 A currentDC Output : 19.5 V with max. 2.31 A current OS Support Windows® 10Windows® 8Windows® 7Mac OS X 10.6Mac OS X 10.7Mac OS X 10.8 Dimensions 242 x 100 x 325 mm (WxDxH) with antenna242 x 100 x 164 mm (WxDxH) without antenna Weight 814.5 g Package Content RT-AX86U WiFi routerRJ-45 cablePower adapterQuick Start GuideWarranty card Operation mode Wireless router modeAccess point modeMedia bridge mode
