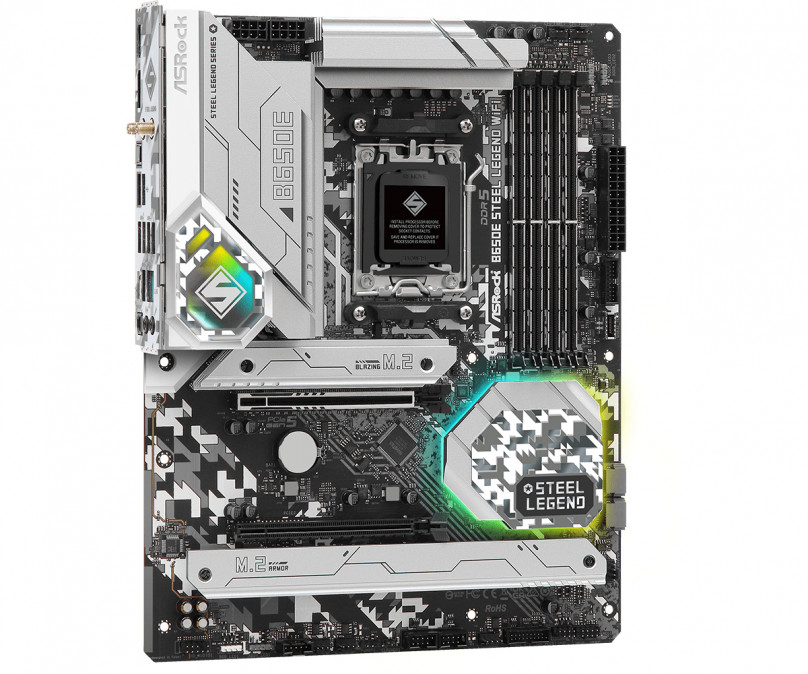

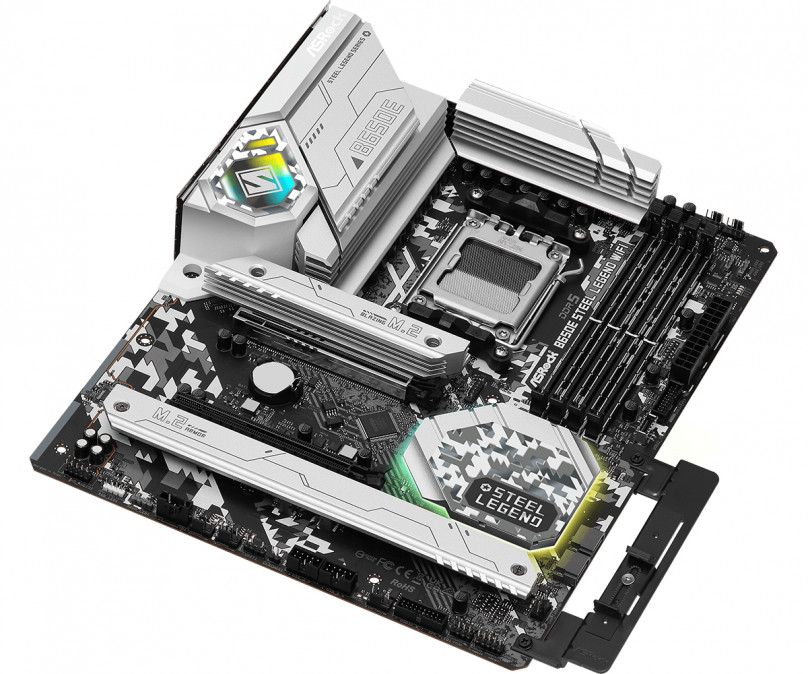

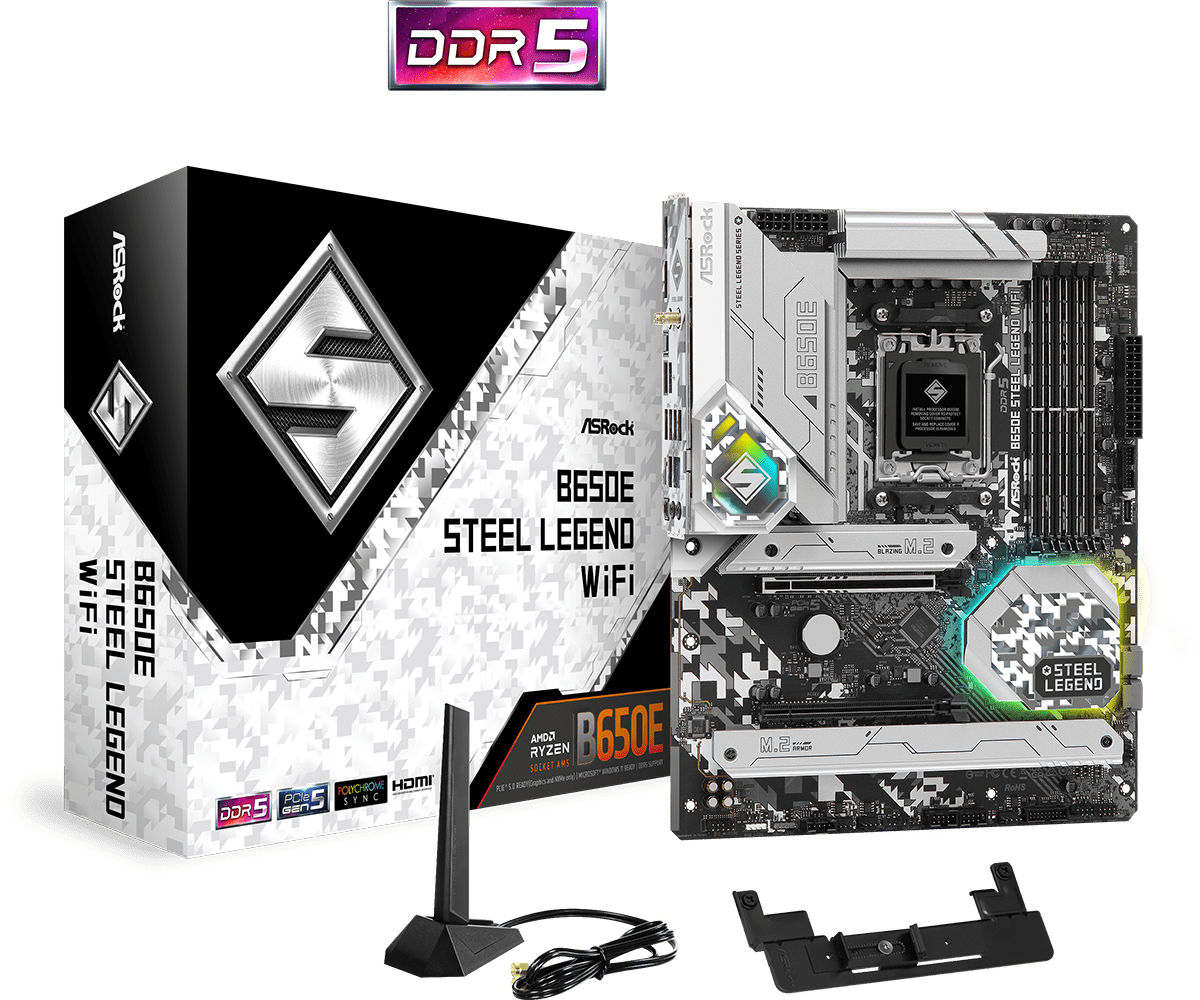

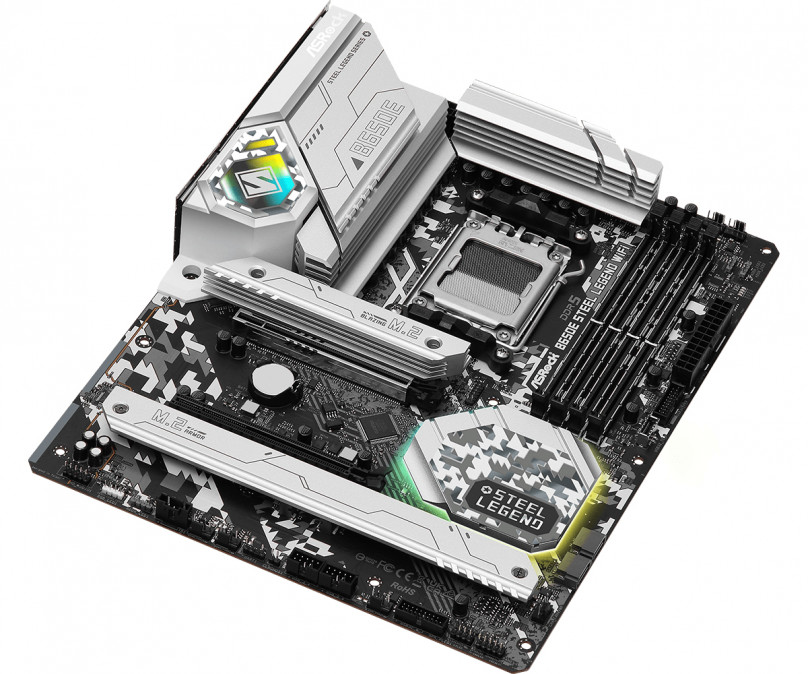

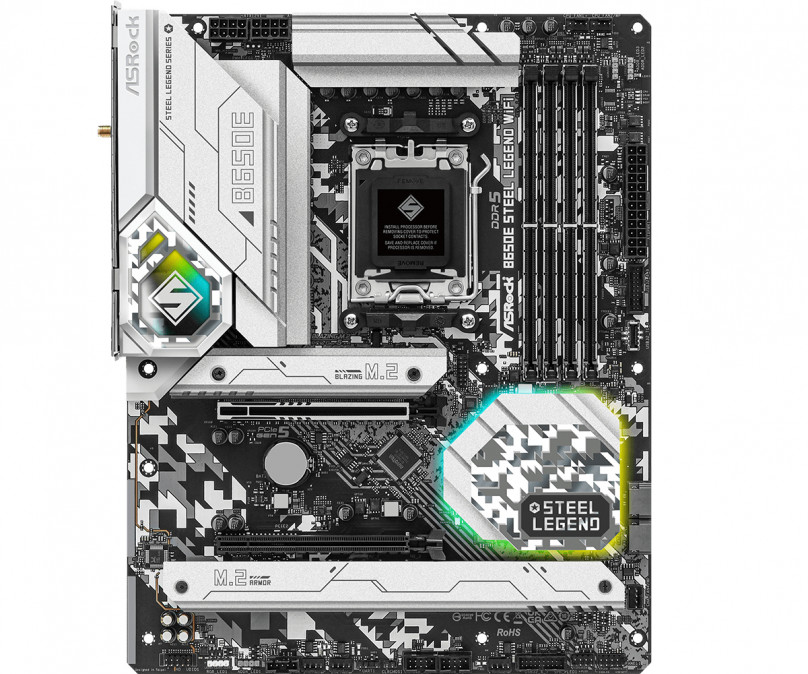

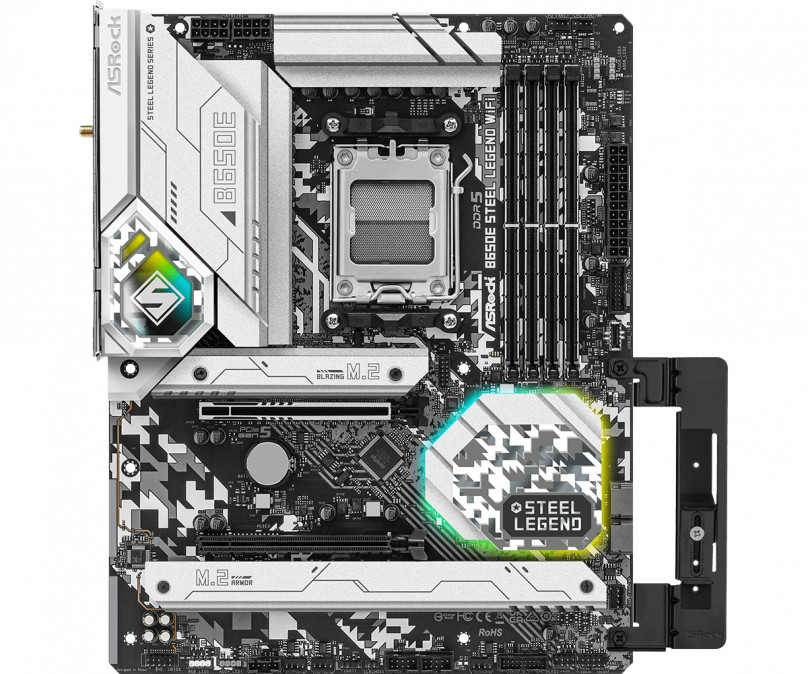

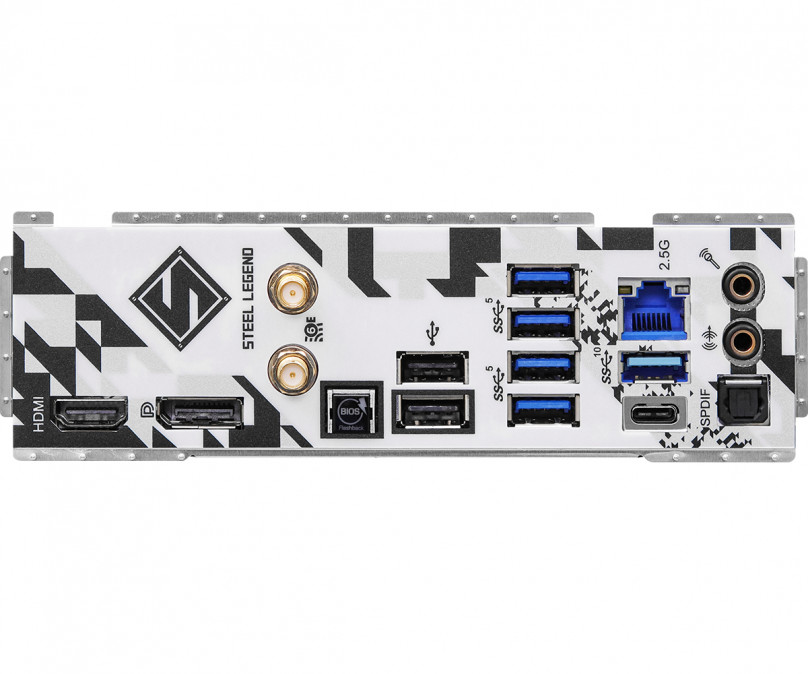

ASRock sAM5 B650E STEEL LEGEND WIFI alaplap ismertető Egyéni tuljadonságok Kimagasló termelékenység- PCIe Gen5 (Graphics, M.2)- Dual Channel DDR5Sziklaszilárd tartósság- Server-Grade Low-Loss PCB- 16+2+1 Power Phase, 60A SPS- Rugalmas beépített I/O pajzs- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)Ultragyors kapcsolatok- 2.5G LAN,802.11ax Wi-Fi 6EModuleEZ Update- BIOS Flashback Button- ASRock Auto Driver Installer Processzor - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors Chipset - AMD B650 Memória - Dual Channel DDR5 Memory Technology- 4 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 6600+(OC)- Max. capacity of system memory: 128GB- Supports Extreme Memory Profile (XMP) and EXTended profilok órajelnöveléshez (EXPO) memory modules BIOS - 256Mb AMI UEFI Legal BIOS with GUI support Videokártyák Integrated AMD RDNA™ 2 graphics (A tényleges támogatás CPU-nként változhat)- 1 x HDMI 2.1 TMDS/FRL 8G kompatibilis, supports HDR, HDCP 2.3 and max. felbontás up to 4K 120Hz- 1 x DisplayPort 1.4 DSC-vel (tömörített), supports HDCP 2.3 and max. felbontás up to 4K 120Hz Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Nahimic Audio LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control Wireless LAN - 802.11ax Wi-Fi 6E Module- Supports IEEE 802.11a/b/g/n/ac/ax- 2x2 dupla sáv támogatása a 6 GHz-es sáv kibővített támogatása mellett*- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.2 + High speed class II- Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.A 6GHz compatible router is required for 6E functionality. Slotok CPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*Chipset:- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- Supports AMD CrossFire™- 15μ Gold Contact in VGA PCIe Slot (PCIE1) *NVMe SSD-k támogatása rendszerindító lemezként Tárolás CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 2 x SATA3 6.0 Gb/s Connectors *NVMe SSD-k támogatása rendszerindító lemezkéntSupports ASRock U.2 Kit RAID - Supports RAID 0 and RAID 1 for SATA tárolóeszközök- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe tárolóeszközök* *Plusz egy M.2 NVMe bővítőkártyát igényel a RAID 10 támogatásához. USB - 1 x USB 3.2 Gen2x2 Type-C (Front)- 1 x USB 3.2 Gen2 Type-C (Rear)- 1 x USB 3.2 Gen2 Type-A (Rear)- 8 x USB 3.2 Gen1 (4 Rear, 4 Front)- 6 x USB 2.0 (2 Rear, 4 Front) *All USB ports support ESD Protection Csatlakozó - 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver) *Összesen akár 12 V/3 A, 36 W teljesítményű LED csík támogatása**Support in total up to 5V/3A, 15W LED Strip***CPU_FAN1 supports the fan power up to 1A (12W).****CPU_FAN2/WP supports the fan power up to 2A (24W).*****CHA_FAN1~4/WP support the fan power up to 2A (24W).CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. Hátsó panel I/O - 2 x Antenna Ports- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x Optical SPDIF Out Port- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)- 4 x USB 3.2 Gen1 Ports- 2 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x BIOS Flashback Button- 1 x Vonalszintű kimenet (Gold Audio Jack)- 1 x Mikrofonbemenet (Gold Audio Jack) Szoftver és UEFI Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC*UEFI- ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Kiegészítők - 1 x Használati útmutató- 2 x SATA Data Cables- 1 x ASRock WiFi 2.4/5/6 GHz Antenna- 3 x Screws for M.2 Sockets- 1 x Standoff for M.2 Socket- 1 x Graphics Card Holder Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm- 8 Layer PCB Operációs rendszer - Microsoft® Windows® 10 64-bit / 11 64-bit Tanusítványok - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
